Custom Fixture Design

Why not build your own fixtures?

My fixture designs are engineered with low-density construction that minimizes beam attenuation, with customizable and modular configurations that attach directly to OEM equipment. The designs reflect years of experience with real-world radiography and CT applications, allowing your team to stay focused on the inspection problem at hand rather than the tooling. Each fixture is optimized for repeatability, ease of use, and material performance — so you can trust the setup and trust the results.

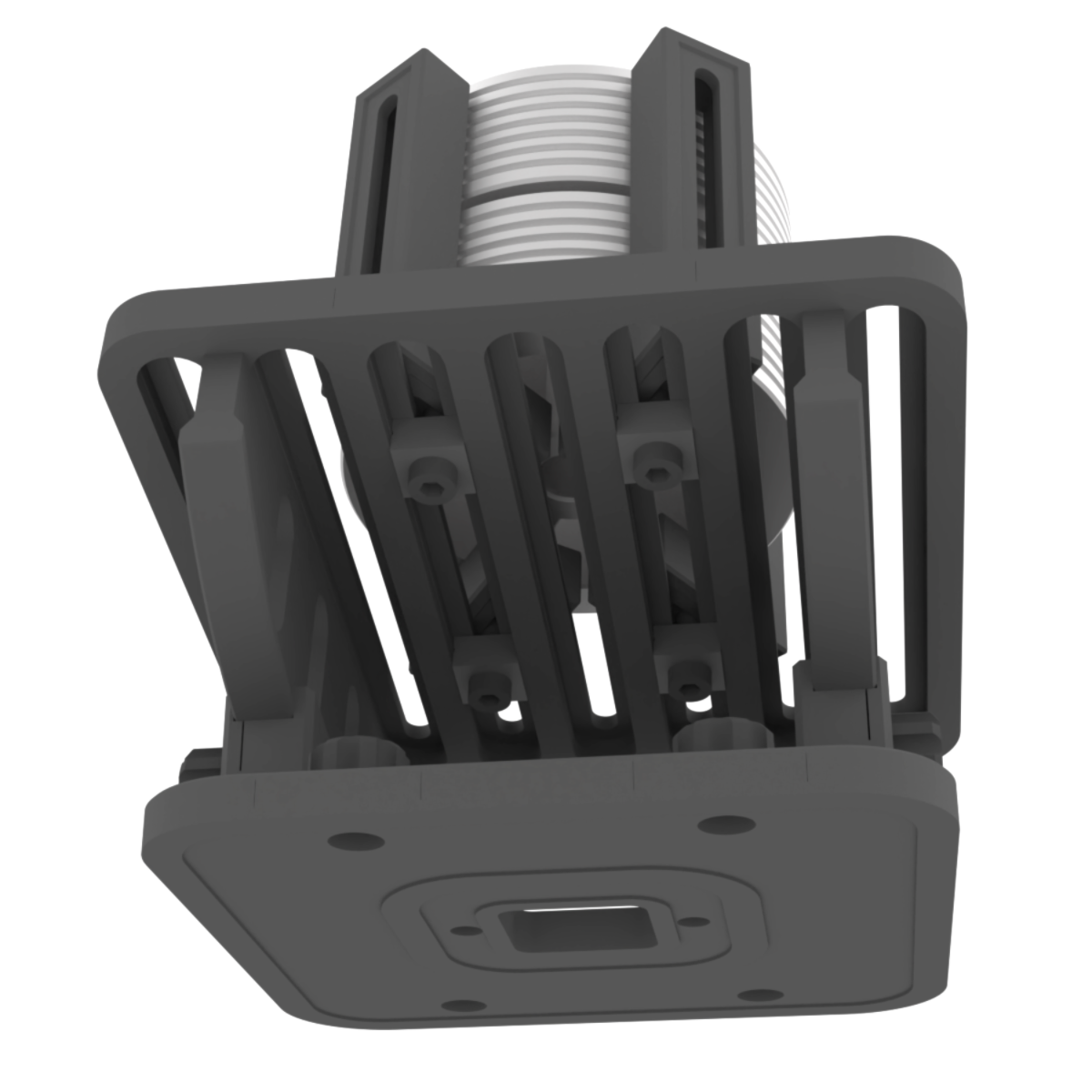

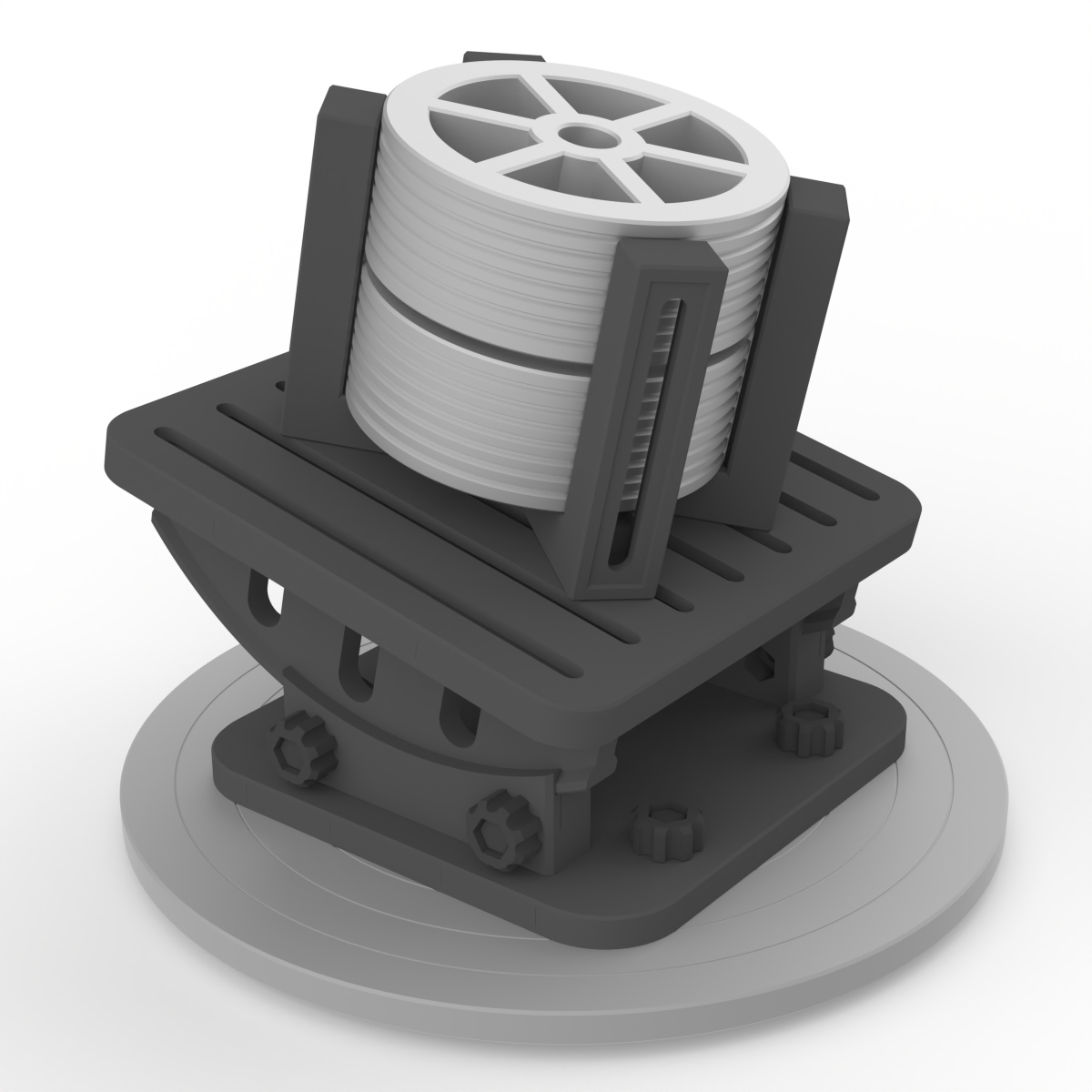

Modular Fixture Kit

  • Rigid T-slot system for maximum versatility

  • Simple tilt adjustment for reduction of cone beam artifacts

  • Standard purchase nylon nuts and screws allow for easy replacement of stripped fasteners

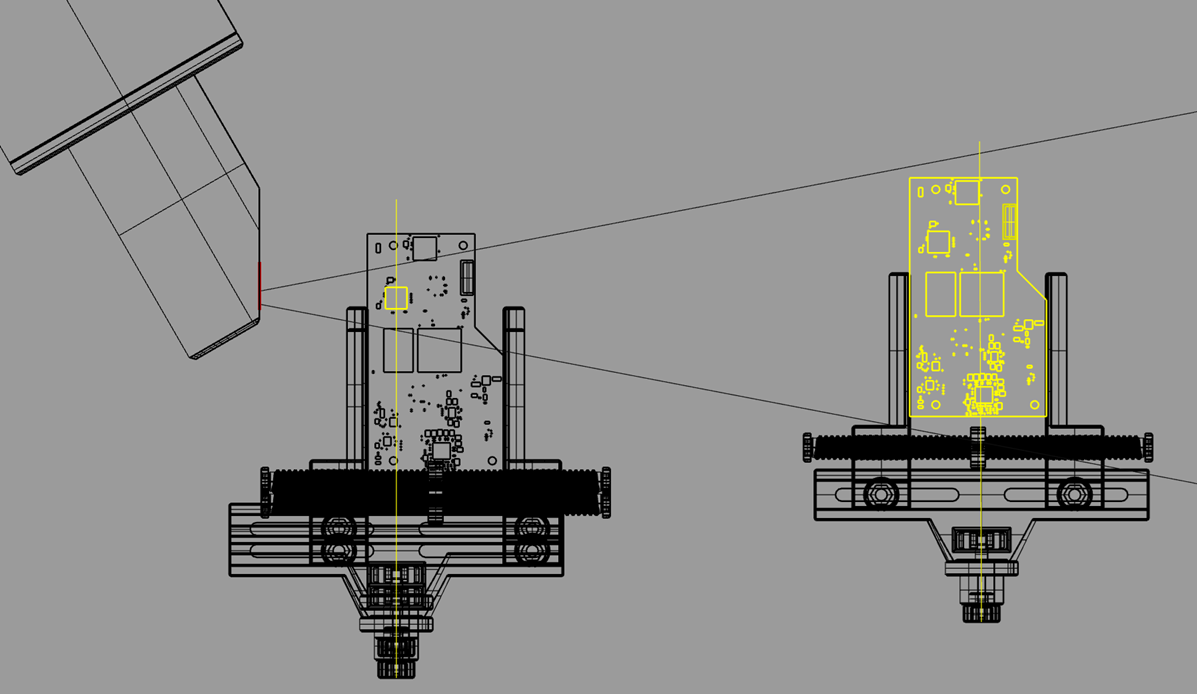

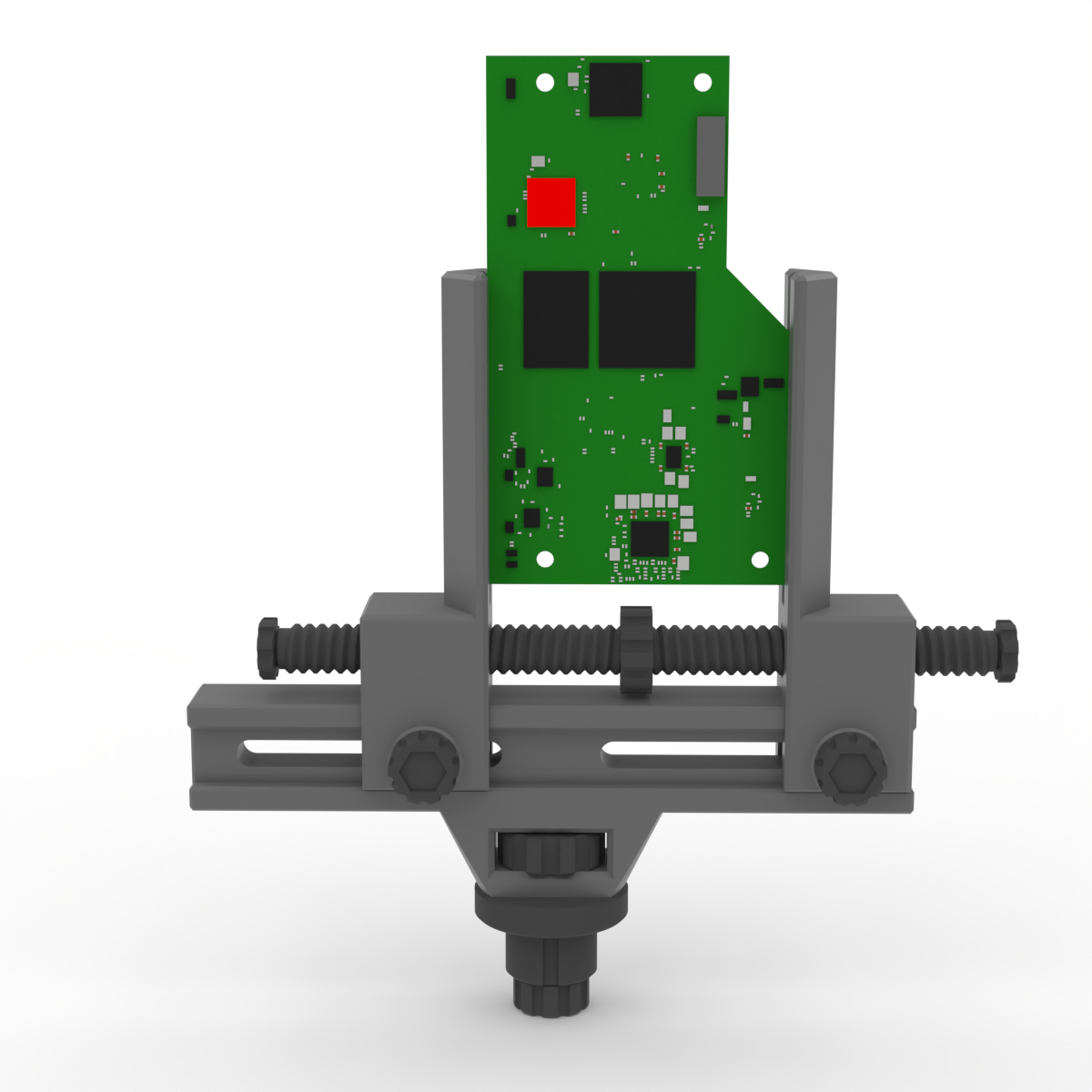

Adjustable Offset Centering Vice

  • Centering screw with locking mechanisms for easy adjustment

  • Off-center positioning allows precise centering for ROI (region of interest) scans

  • Mounts to existing quick-change sample holders

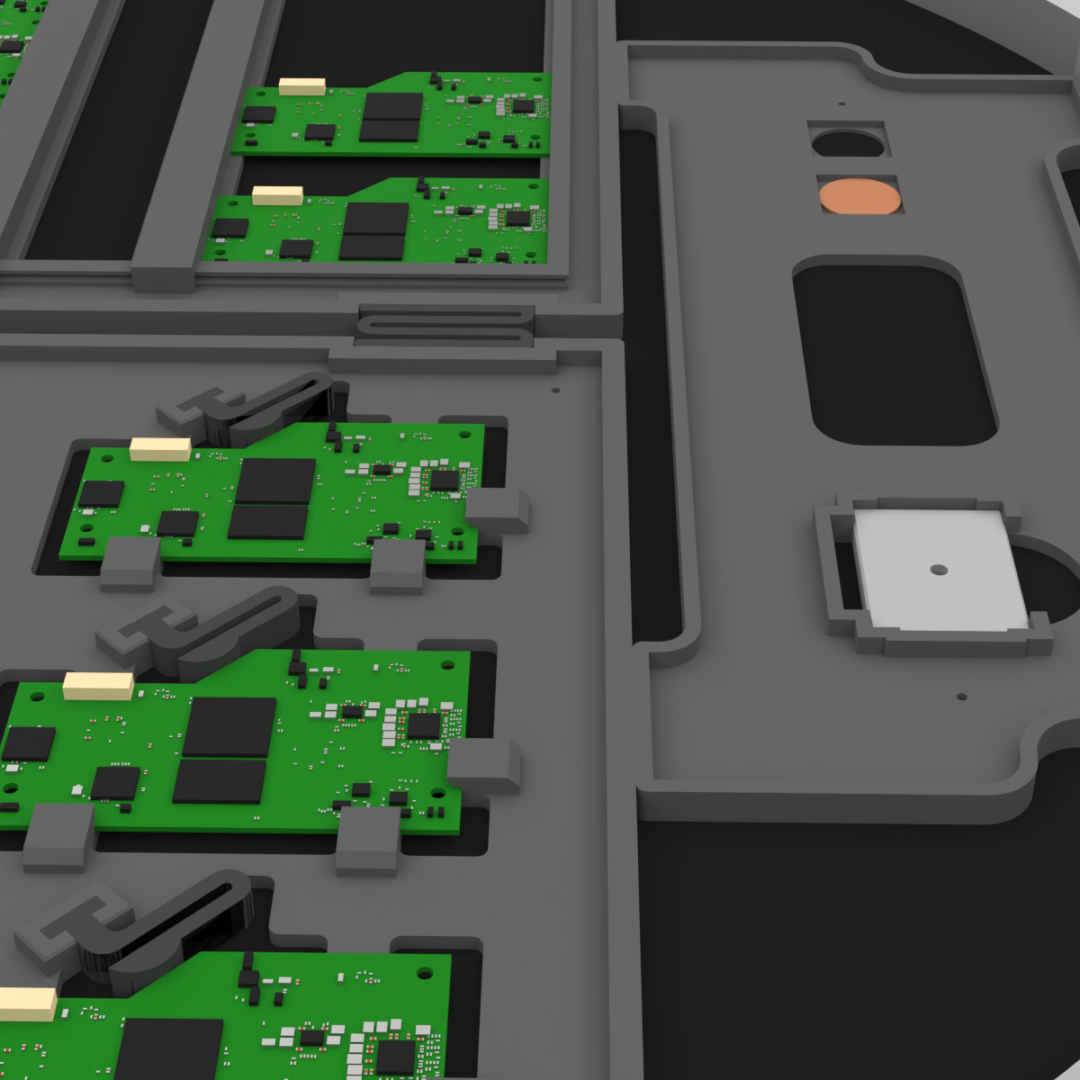

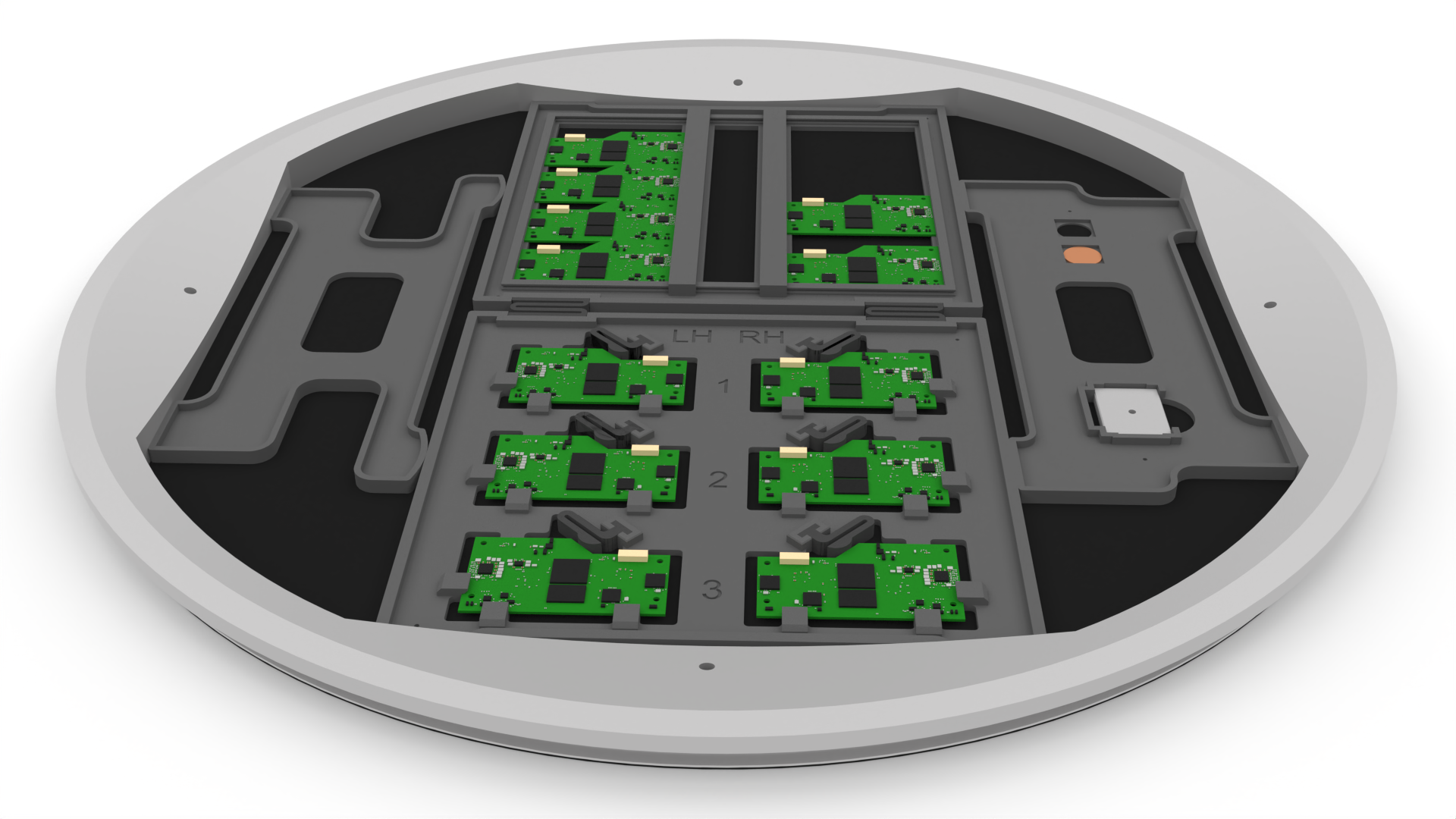

Quick-change PCB Fixtures

  • Board specific or general purpose applications

  • Self aligning details for repeatable positioning

  • Fiducial markers for automated inspection alignments

  • Integrated holders for JIMA / IQI (Image Quality Indicator) and flux calibration filters

  • ESD safe materials available

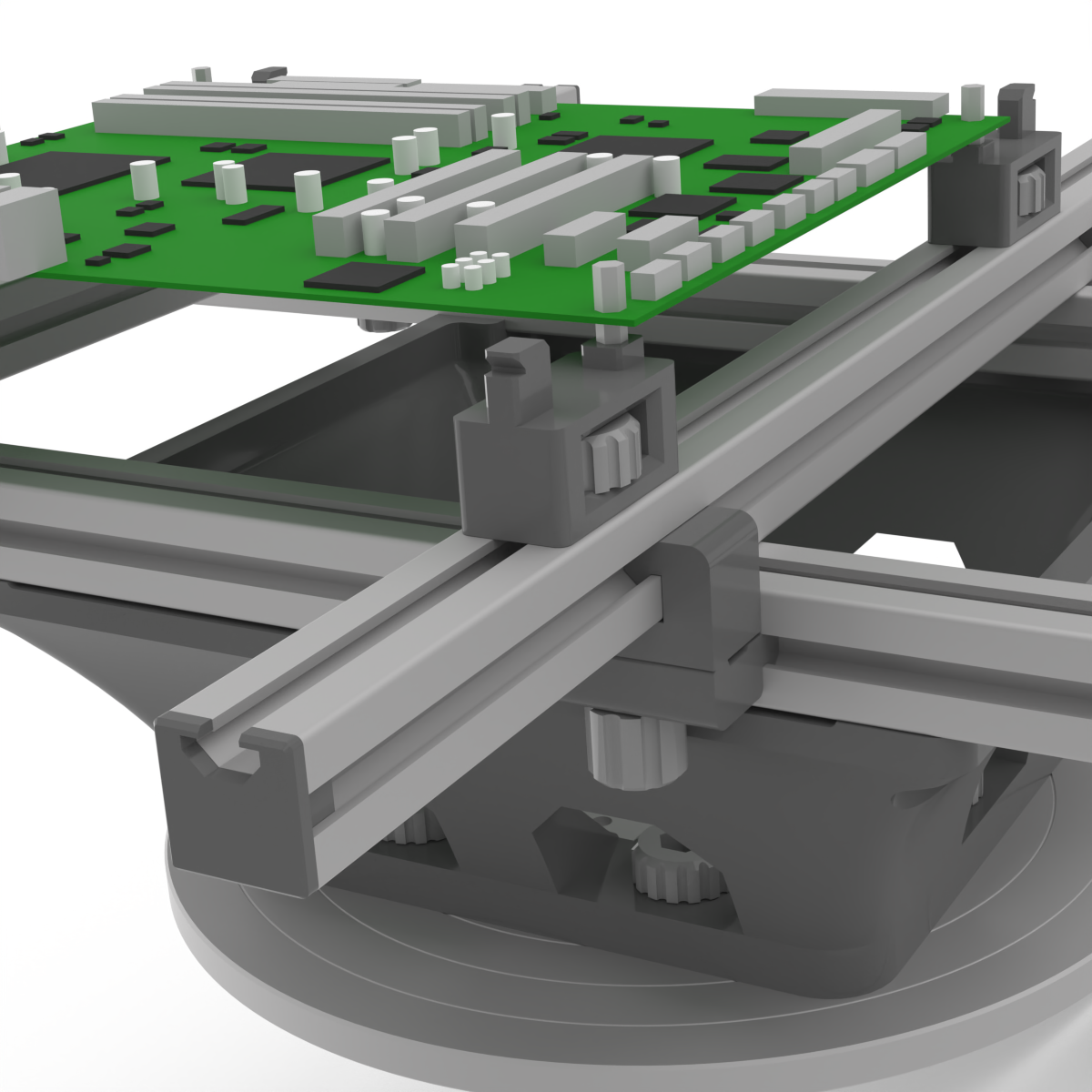

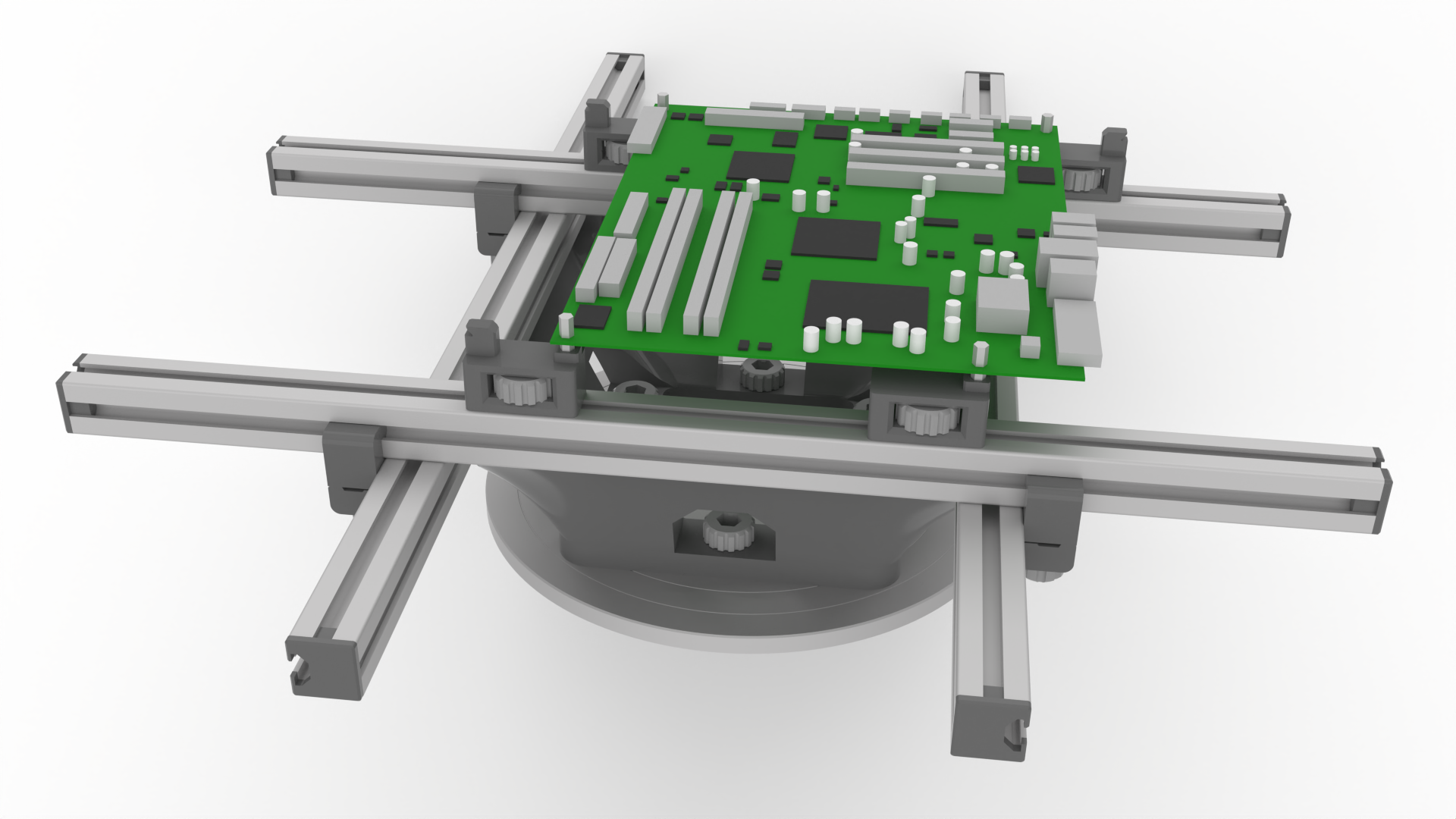

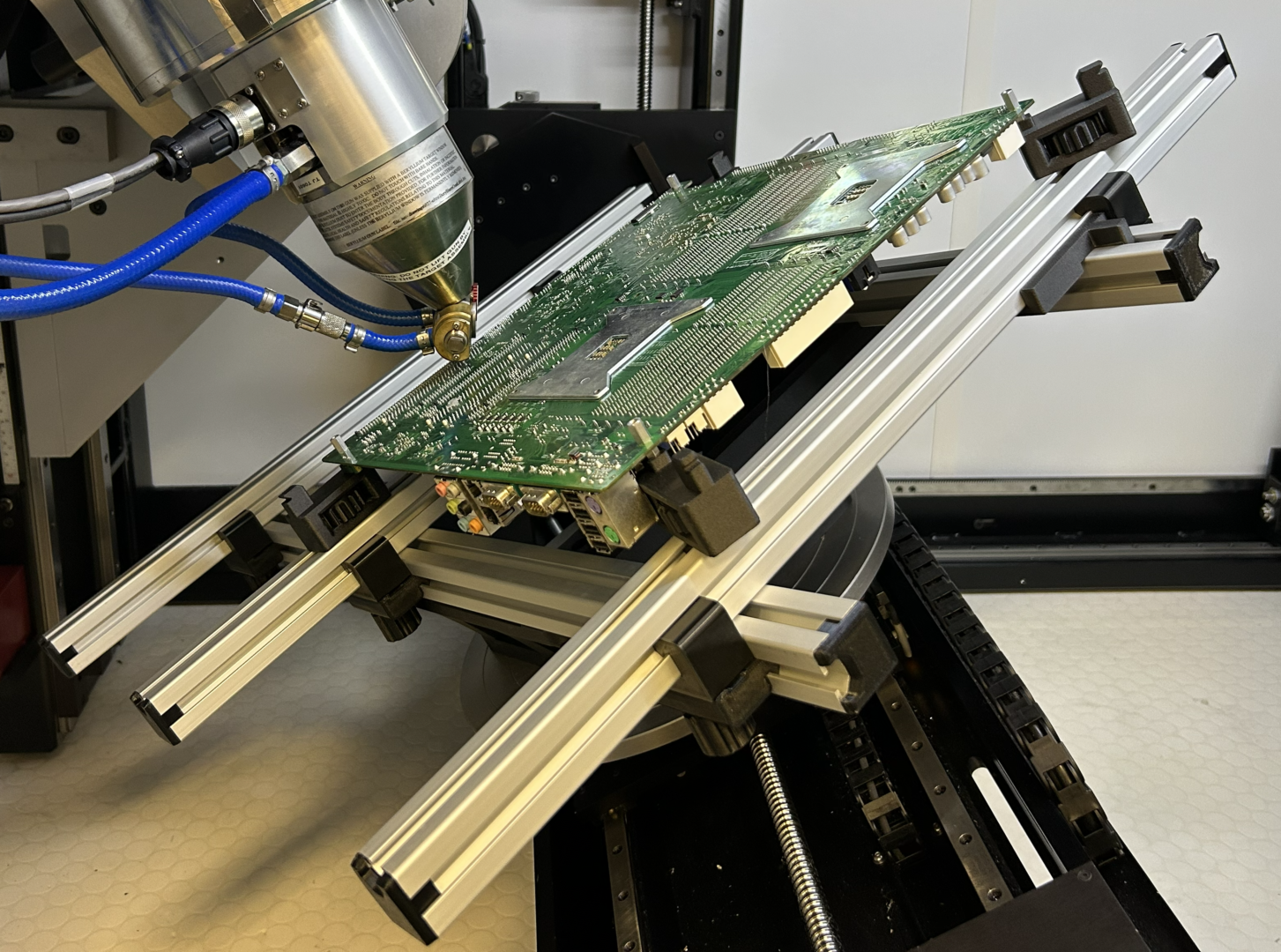

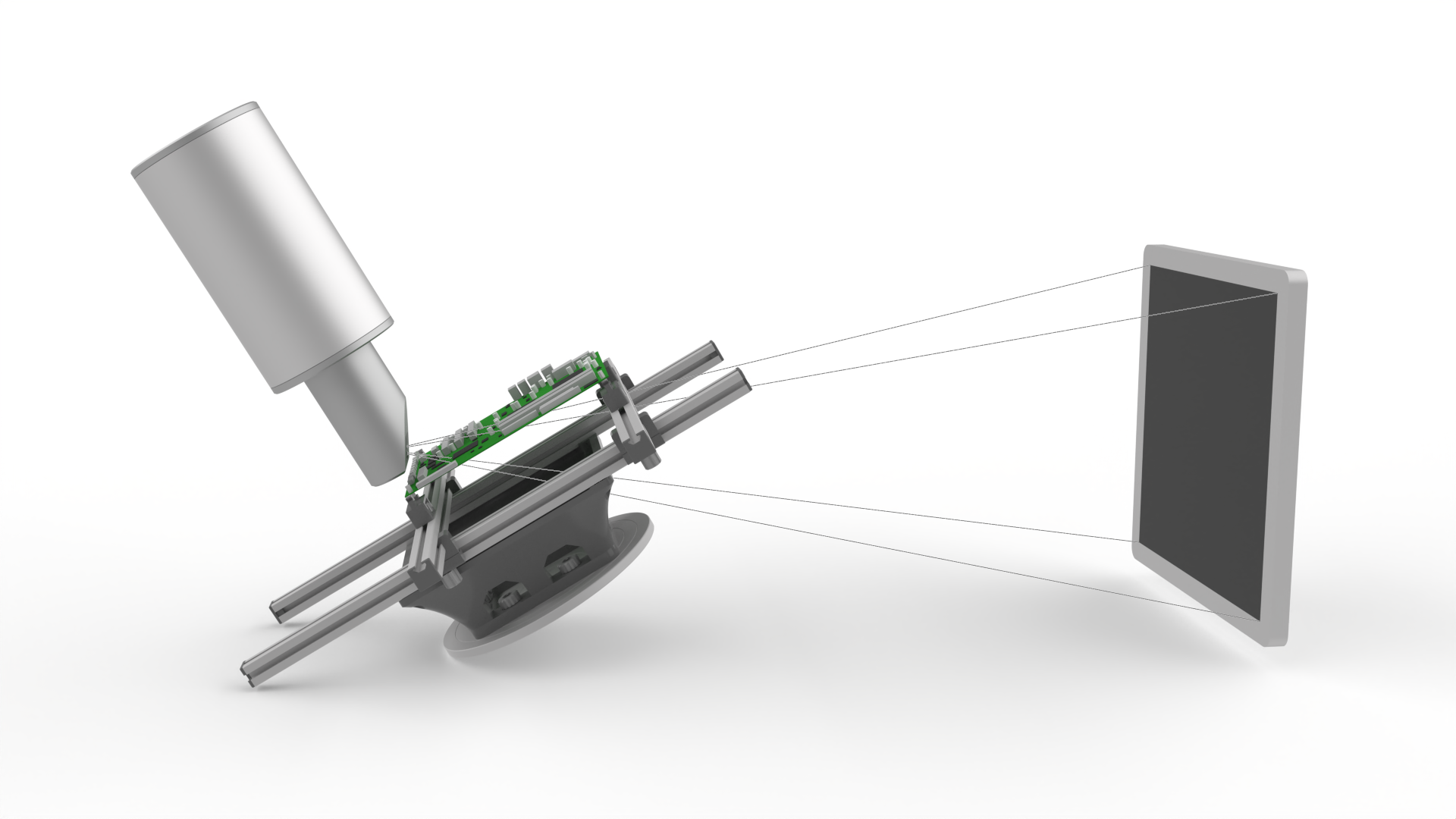

Tilt CT Fixture

  • 500 × 600mm max sample size

  • Extruded aluminum rails for improved structural rigidity

  • Low density plastic, aluminum, and titanium fasteners

  • Quick adjust sliders for easy positioning of samples

Don’t see what you’re looking for? Contact me—dozens of other designs exist.
